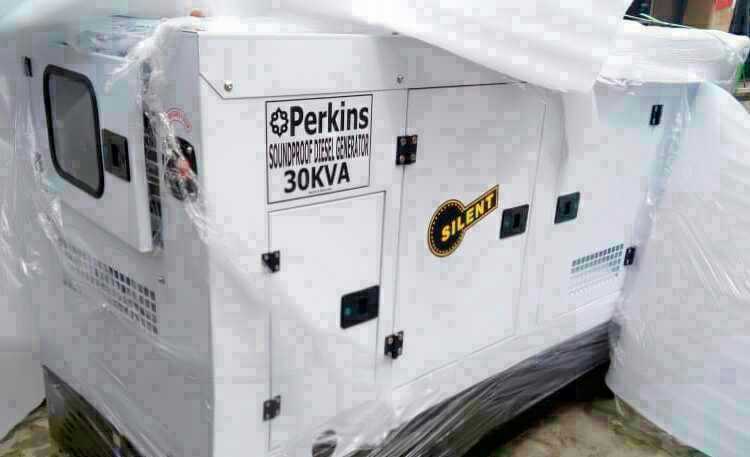

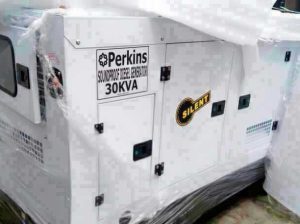

Engineered to well renouwned UK manufacturing quality standards, Our Perkins Diesel Generators Are Known For Their Reliability and High Quality Modern Designs, We also specialise in Off Grid Power Solutions and Installations of New Diesel Generators and other alternative power solutions custom built to your specification, get in touch for more information. Our innovation diesel generator design is well known for their reliability worldwide, both locally and globally. Based in the heart of the United Kingdom. With an emphasis on Quality and Reliability for our New Diesel Generators, our talented team of engineers work hard to deliver high-quality solutions for any power requirements you may have. Covered by the extensive worldwide Perkins manufacturing warranty on all our products.

our diesel generators are made to high quality standards using reliable engines form manufacturers like Perkins. our team of engineers have years of experience in the power industry and will be more then happy to assist, we specialise in Perkins Generators and many other brands as well.

AMPS.                                42.7 Engine Data Manufacturer Perkins Model 404D-22TAG Cylinders 4, Vertical in-line Max. power @ rated rpm; kWm (BHP) 36.4 (48.8) Brake mean effective pressure; kPa 1095.4 Aspiration & Cooling Turbo charged air to air charge cooling Total displacement; L (in3) 2.216 (135.2) Bore; in. (mm) 3.3 (84) Stroke; in. (mm) 3.9 (100) Compression ratio 23.3:1 Governor type Mechanical Rotation Anti-clockwise viewed on flywheel Engine Electrical System Charging alternator 12V, Negative Ground Alternator rating; (amp) 65 Starter motor rated voltage; (dc) 12 Battery quantity x rating 1 x 54Ah Battery cold cranking amps; 410 Fuel System Type of injection Indirect Fuel injection pump Cassette type Fuel supply connection size 3/8'' NPT Fuel return connection size 1/4'' NPT Max. fuel lift; m (ft) 3 (9.84) Fuel prime pump Manual Max. fuel flow; L/h (gal/h) 63 (16.6) Fuel lift pump pressure; kPa 10 Fuel filter & water separator Available Exhaust System Exhaust gas flow; (m3/min) 8.4 Max. back pressure; (kPa) 10.2 Max. exhaust gas temp; (⁰C) 478 Exhaust outlet size; (mm) 42 Cooling System Radiator ambient temp; ⁰C (⁰F) 50 (122) Coolant capacity; L (gal) 9.3 (2.4) Coolant pump drive Gear Thermostat operation range; ⁰C 82-95 Max top tank temp; ⁰C 112 Cooling fan type Pusher Cooling fan material Plastic Combustion air flow; m3/min 2.49 Engine coolant flow; L/min (gal/min) 56.2 (14.9) Energy to coolant and oil; kWt 37.7 Energy to ambient; kWt 4.6 Energy to cooling fan; kWt 0.7 Air filter Dry element Lubrication System Oil capacity; L (gal) 10.6 (2.8) Oil cooler Water cooled Oil filter Spin on, replaceable Oil temp (continuous operation); ⁰C 125 Oil flow at rated speed; L/min 15.2 Alternator Data Manufacturer Stamford Model Winding #311 PI144H Winding #06 – Dedicated 1 phase PI144H Design 4 Pole, drip proof rotating field Exciter type Brushless, self excited EBS option is available Stator 2/3 winding pitch Rotor Single bearing, flexible disc Leads Winding #311 12 Winding #06 4 Voltage regulator Solid state, Volts/Hz Voltage regulation Self excited 1% Insulation Class H Temp. rise @ 40⁰C ambient 125⁰C Prime 150⁰C Standby Alternator Cooling Direct drive centrifugal blower Cooling air; m3/min 0.108 Waveform distortion No load < 1.5% Non-distorting balanced linear load <5% Max. over-speed; rev/min 2250 Telephone influence factor (TIF) <50 Telephone harmonic factor (THF) <2% Sustained short circuit current 10sec with EBS fitted; (amp) Winding #311 – Star 191 Winding #311 – Parallel Star 382 Locked rotor kVA (skVA) @30% voltage dip Self Excited 480/277V - 3ph 84 208/120V - 3ph 56 Protections • Gen. Voltage - under/over • Gen. Frequency - under/over • Engine Speed - under/over • Engine Oil pressure - low • Engine Temp. - low/high • Battery Voltage - low/high • Weak battery • Fail to start/stop • Charge fail • Over current & load(kW/kVAr) • Unbalanced load • Independent Earth Fault • Reverse Power • Fuel level - low/high (optional • Loss of speed signal Instruments • Gen. Voltage (L-L/L-N) • Gen Frequency • Engine Speed • Oil Pressure • Water Temperature • Battery Voltage • Run time • Engine maintenance due • Phase sequence • Pwr. monitoring (kWh / kVAh / kVArh) • Power (kW/kVA/kVAr) • Power factor • Gen. Current (L1-L2-L3) • Earth current Standard Features & Accessories

• UL2200 Listing

• Sound Attenuated Steel Enclosure • Heavy Duty Steel Base-frame • Anti-vibration pads • Residential Grade Silencer Inside Enclosure • Flex Fuel Lines • Oil Drain Valve & Extension • Emergency Stop Switch • Battery, Battery Rack & Cables • Battery Charger (4 Amp) • Main Line CB (80% rated) • Jacket Water Heater (500W) • Operations Manual • 2 Years / 2000hours Limited Warranty Optional Accessories Upsized Alternator • Alternator Anti-condensation Heater • Manual Speed Adjust • Sub Base Fuel Tank (UL142 / UL2085) • Low Fuel & Fuel Leak Alarms • Fuel Level Monitoring on Controller & High Fuel Alarm • Spring Type Anti-vibration pads • Critical Grade Silencer • Fuel Line Check Valve • Oil Temperature Gauge • Remote Emergency Stop Switch • Battery Restraint • Battery Charger 10/20Amp per NFPA110 • Main Line CB (100% rated) • Main Line CB Shunt Trip • Remote Serial Display Panel • Remote Annunciation Panel (8/16/24 lights)
